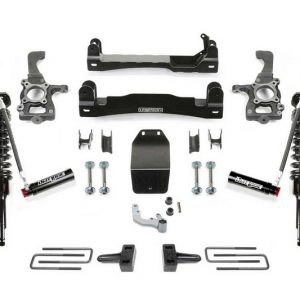

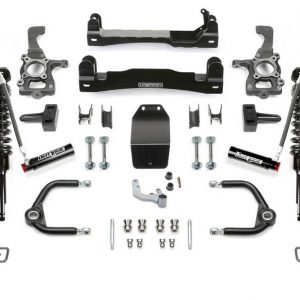

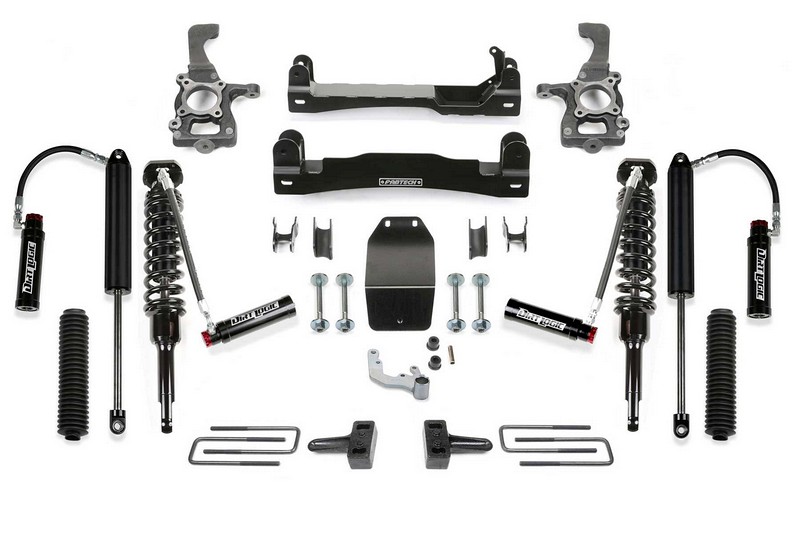

Fabtech 4″ Lift Kit w/ Front Dirt Logic 3.0 Resi Coilovers & Rear Dirt Logic 3.0 Resi Smooth Body Shocks

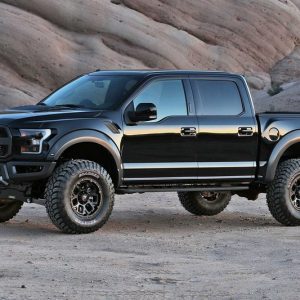

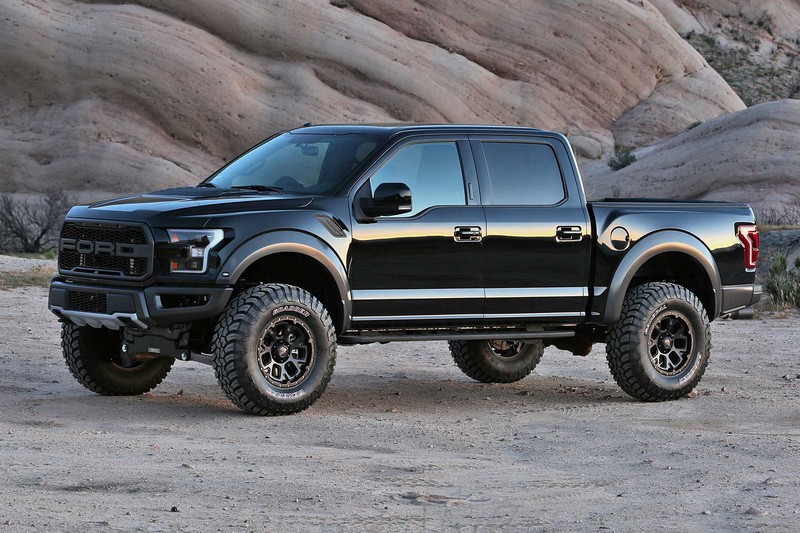

When you’re ready to run 37″ tires on your Raptor and have the ultimate shock system to go with it then this is the kit for you.

The lift features heavy duty ductile iron steering knuckles designed to handle 37″ tall tires with the vehicle’s ESC (electronic stability control) and Traction Control. Typically, 37″ tires will cause steering and brake issues on the factory Ford steering knuckles. Fabtech knuckles are designed for the oversized tires and will provide years of trouble free service.

The lower Raptor control arms are relocated with 1/4″ thick steel Crossmembers and comes with a 1/4″ thick steel differential skid plate. To keep the front CV angles proper with the new ride height, the front differential is relocated down between the crossmembers for smooth 4WD operation.

The front Raptor shocks are replaced with Dirt Logic 3.0 Coilovers that feature a remote reservoir compression adjuster. This allows for a compliant highway ride with the ability to adjust the compression damping for aggressive offroad use. The rear Dirt Logic 3.0 Smooth Body shocks allow for 12″ of wheel travel with a remote reservoir that has a compression adjuster for increased damping control.

The Dirt Logic 3.0 shocks will provide a noticeable increase in damping for Raptor owners looking to take their vehicle to the next level in suspension performance.



As an alternative to the high end Dirt Logic 3.0 Bypass shocks, Fabtech offers a 3.0 smooth body shock for the rear of Raptors. These 3.0 shocks are externally compression adjustable and will provide improved damping compared to the stock Raptor shocks at an affordable price.

These shocks are constructed with a steel body and receive a Cerakote finish in tactical black for extreme durability. This coating provides 120 hour salt spray compared to zinc plated steel shocks only going 48 hour salt spray.

The 2.5″ OD remote reservoir features a compression adjuster to provide additional damping for severe offroad use. Note – resi mounts to shock body.

NitroSteel® 7/8″ piston rods are utilized for maximum corrosion resistance. A durable piston rod boot is included to totally protect the rod from sand and rock spray that can cause damage leading to seal failure.

High tolerance internal components feature Viton seals and a 2.75 OD billet piston with variable flow bleed ports. It provides a compliant ride at low speed yet be able to handle big impact hits with ease.

Completing the blacked out appearance of these Raptor shocks is the polished and black anodized aluminum components. They offset the matte Cerakote finish for a subtle yet bold statement.

Each Dirt Logic 3.0 is hand assembled by master technicians to ensure the highest quality standards are met and are ready to run out of the box for aggressive offroad use.



  • 3.0″ Black Cerakote Body 120 Hour Salt Spray
  • Allows for 12″ of wheel travel with stock leaf springs
  • 2.75″ OD Billet Aluminum Piston
  • 7/8″ OD NitroSteel® Black Piston Rod
  • Viton Seals
  • Exotic Valve Stack
  • 2.5″ OD Aluminum Resi w/ Compression Adjuster
  • 5/8″ Spherical Ball Mounting Ends

Additional information


2017, 2018, 2019, 2020




F150 Raptor
