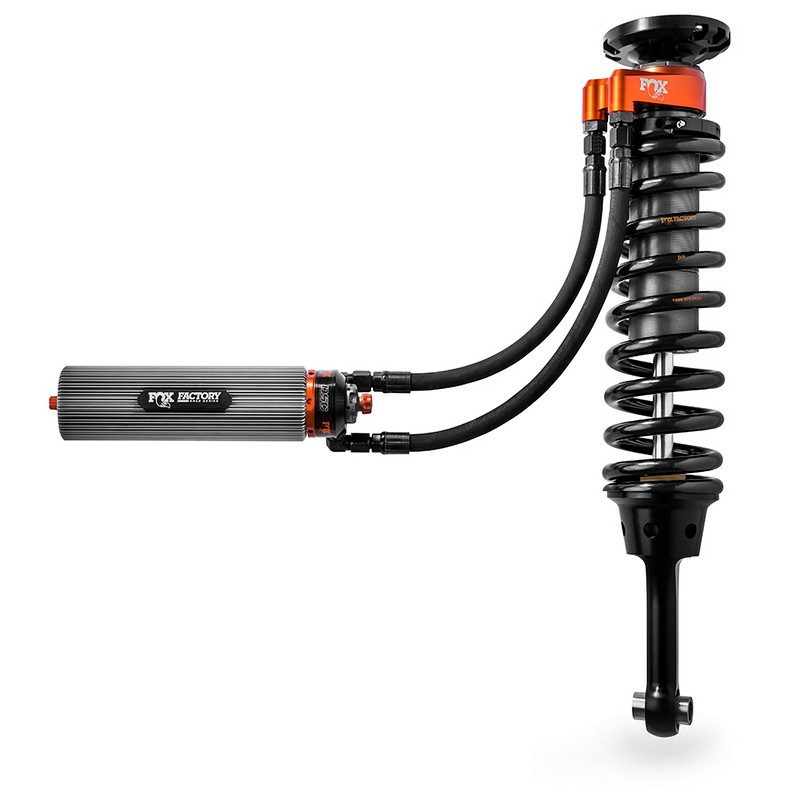

Fox Factory Race 3.0 Coil-Over Internal Bypass Recirculating Finnded Remote DSC for 17-18 Ford Raptor Gen 2


Starting at $3,399.95 a pair

SKU: 883-06-140 Categories: , Tags: , ,


Take your Gen 2 Raptor to the next level with this Fox Factory Race front upgrade kit, designed to deliver a high level of adjustability via Dual Speed Compression (DSC) adjusters and improved cooling efficiency through an all-new Recirculating Reservoir Bridge and finned remote reservoir. This kit delivers the next level of off-road performance without sacrificing every day ride quality and comfort.



INTERNAL BYPASS: FOX patented Internal Bypass technology offers position sensitive damping that adapts to any terrain on and off the road, providing a plush, predictable ride everywhere you go.

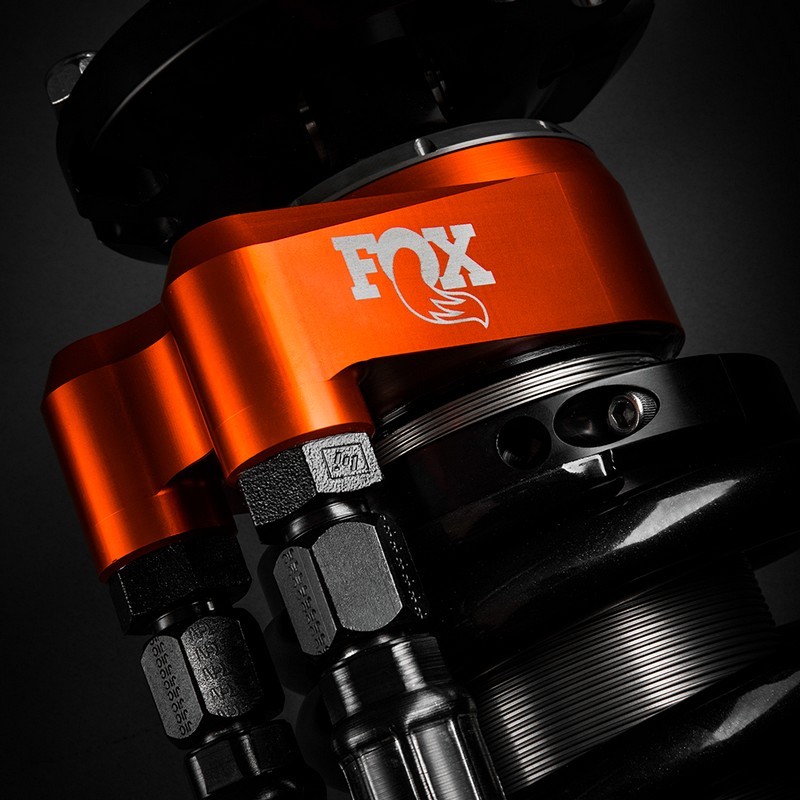

NEW RECIRCULATING RESERVOIR BRIDGE: To improve cooling efficiency, the all-new recirculating reservoir bridge utilizes dual, unidirectional checked ports and hoses to force fluid circulation through the new, aluminum finned remote reservoir, greatly increasing cooling efficiency when compared to a conventional reservoir.

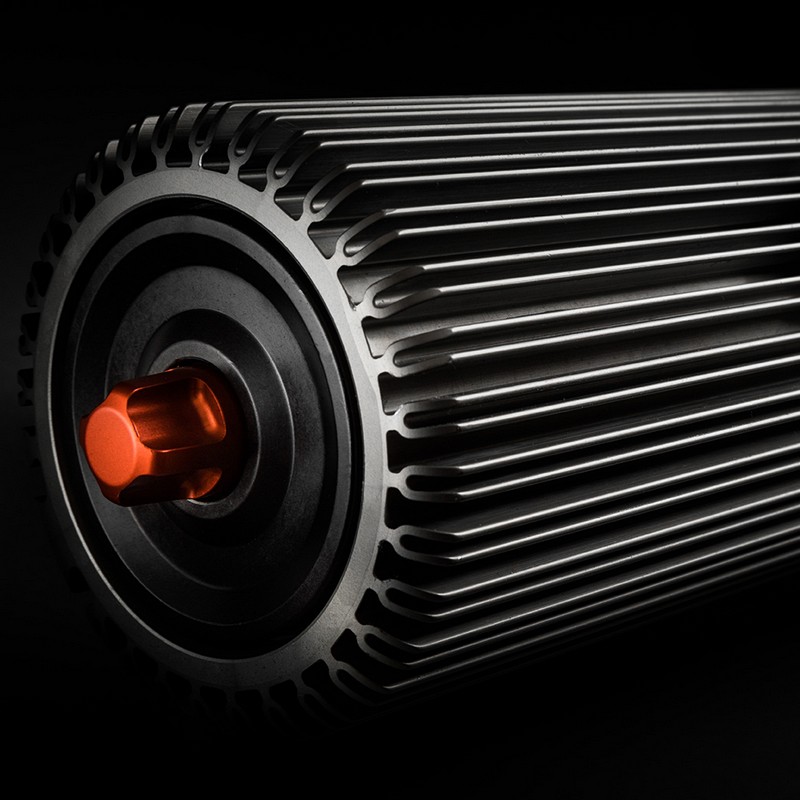

NEW FINNED RESERVOIR: To further improve cooling, the all-new finned aluminum reservoir facilitates heat dissipation through its extruded fins, which act as heat sinks and provide additional cooling surface area. Finned reservoir mounting hardware included.

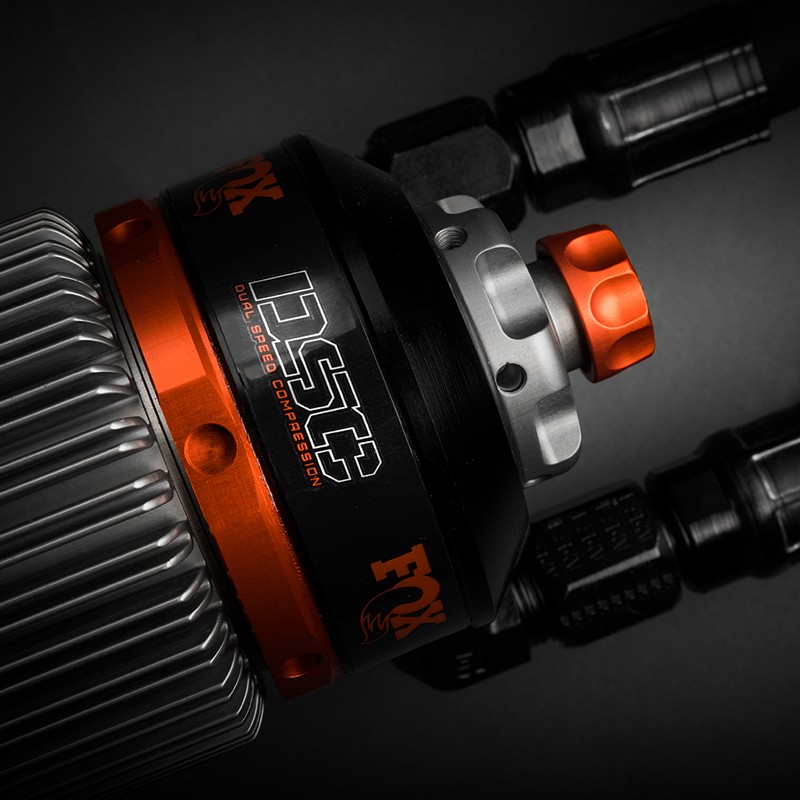

DUAL SPEED COMPRESSION: Dual Speed Compression (DSC) adjusters provide added tuning for control and comfort for on-road use while offering more aggressive damping for use off-road. The DSC adjuster allows separate adjustment of both high and low-speed compression by hand to maximize small bump compliance and comfort while maintaining the extra damping required for more substantial impacts. The Fox Factory Race 3.0 Coil-Over Internal Bypass DSC’s can be set to match the Gen 2 Raptor’s stock ride quality and add the ability to increase compression damping by up to 50%.

Additional information


3.0" Hard anodized aluminum


Hard anodized, CNC-machined 6061-T6 billet aluminum


Specific for Gen 2 Raptor to maximize performance and comfort


Redundant sealing pack system, main seal


JM92 Advanced Suspension Fluid


7/8" 17-4 H900 hard chrome plated stainless steel


Spherical, PFTE-lined, heat-treated steel


Heat treated steel spherical heim mounting


NEW, hard anodized extruded aluminum finned remote reservoir with NEW Recirculating Reservoir Bridge


3.75" racing spring selected specifically for the Gen 2 Raptor, preset to level your stock Raptor front-to-rear


Hard anodized 6061-T6 billet aluminum high flow race piston


Dual Speed Compression (DSC) adjuster, Ride-height/spring preload ring
