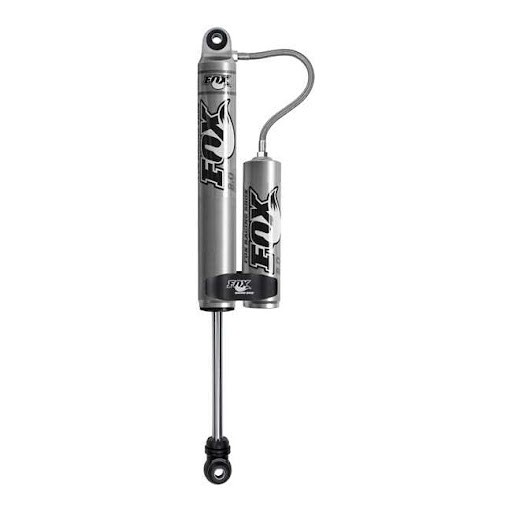

Fox Performance Series 2.0 Smooth Body Reservoir Shock


SKU: 980-24-956 Categories: , Tags: , ,


The aluminum bodied Performance Series 2.0 Reservoir smooth body shock delivers FOX’s industry leading and race dominating performance in an affordable, hassle-free bolt on package. Its heat reducing design includes a metal impacted clear anodized aluminum shock body that dissipates heat faster than a conventional steel body shock.

Its external reservoir allows for increase oil and nitrogen capacity while delivering a striking race look. The included black anodized reservoir mounting clamp and other components are CNC machined from 6061-T6 aluminum. The race developed high flow damping piston matched with application specific vavling provides the Performance Series 2.0 Reservoir shock a predicable ride quality capable of handling the roughest road conditions.

  • Rear shock
  • For 4-6 inch lift
  • 2.0″ Impact extruded 6061-T6 aluminum body will resist rust over time
  • Clear-anodized body plating for a durable finish
  • 2.0″ Smooth bore 6061-T6 Aluminum reservoir is hard anodized
  • Black-anodized, CNC-machined 6061-T6 billet aluminum components
  • 5/8″ hard chrome plated heat-treated alloy steel shaft
  • Race-developed high-flow piston design
  • Application specific valving to maximize performance
  • Redundant sealing pack system main seal, wiper seal, scraper seal
  • JM92 Advanced Suspension Fluid for improved performance at variable temperatures
  • Quiet nitrile rubber bushings allows for increased suspension articulation
  • Extended length: 29.45 in.
  • Compressed length: 17.35 in.
  • Travel: 12.1 in.
  • Top and bottom eyelet mounts
  • Includes billet reservoir clamp
  • Sold individually

Additional information

Shock Series:

2.0 Shock Res





Shock Type:



Direct Fit


Includes Billet Reservoir Clamp

Hydraulic / Gas Charged:

Gas Charged
