Our Factory Series Coil-Over with Internal Bypass does it all. Position-sensitive internal-bypass control in a coil-over body.
For classes that mandate a single shock per wheel or anyone who wants it all. Provides bypass damping and suspends the vehicle in a compact lightweight package.

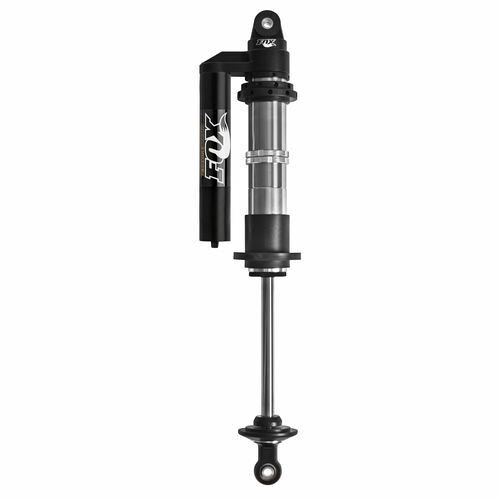

- Fox 2.5 Factory Series Universal off-road shock
- Piggyback reservoir with 360 degree rotatable bridge
- Features: smooth bore and honed seamless steel body
- Zinc plated for a long-lasting finish
- Black anodized, CNC machined 6061-T6 billet aluminum components
- 7075 hard-anodized high-flow aluminum piston
- Tunable,velocity sensitive deburred valve shims
- High-temp Viton® redundant sealing pack system with main seal, wiper seal and scraper seal
- JM92 Advanced Suspension Fluid for improved performance at variable temperatures
- 17-4 H900 hard chrome plated stainless steel shaft
- Spherical, PFTE-lined, heat-treated alloy steel bearing
- Spring not included
- Spring preload and dual stage crossover ring adjustments
- 33.43 in. Extended Length
- 21.43 in. Collapsed Length
- 12 in. Travel
- Top and bottom 1/2 x 1.5 eyelet mounts
- 2.5 x 11.0 reservoir with DSC – Dual Speed Compression adjustment
- Custom valving
- Sold individually
