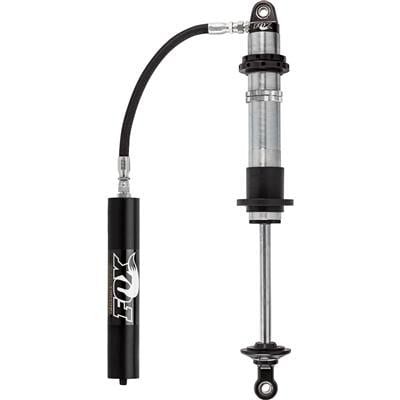

FOX 2.5 x 8.0 Factory Race Series Coilover Remote Reservoir Shock with DSC Adjuster



Factory Series coil-over shocks are the foundation of a race-winning suspension. They epitomize efficiency by combining our race-proven damping technology with a means to suspend the vehicle in one easy-to-mount assembly.

Regardless of whether you are flying high over the desert or struggling to stick to a rock face on an off-camber climb, our coil-overs will give you the damping performance, suspension control and proper spring rate to get the job done. They come in several rock-solid configurations that will fit your application perfectly.

  • Fox 2.5 Factory Series universal off-road shock
  • Features: smooth bore and honed seamless steel body
  • Zinc plated for a long-lasting finish
  • Black anodized, CNC machined 6061-T6 billet aluminum components
  • 7075 hard-anodized high-flow aluminum piston
  • Tunable, velocity sensitive deburred valve shims
  • High-temp Viton® redundant sealing pack system with main seal, wiper seal and scraper seal
  • JM92 Advanced Suspension Fluid for improved performance at variable temperatures
  • 1″ 17-4 H900 hard chrome plated stainless steel shaft
  • Spherical, PFTE-lined, heat-treated alloy steel bearing
  • Spring not included
  • Spring preload ring and dual stage crossover ring adjustments
  • Extended 25.43 in.
  • Collapsed 17.43 in.
  • Stroke 8.0 in.
  • 60/40 valving
  • Top and bottom mounts: 1/2 x 1.5 eyelets
  • 2.5 by 14 remote reservoir with DSC – Dual Speed Compression adjustment
  • -10 x 18 hose
  • Sold individually

Additional information

Shock Series:

2.5 Coilover Res

Top Mount:




Shock Type:



Universal Fit

Body Diameter:

2.5 in

Hydraulic / Gas Charged:

Gas Charged

Bottom Mount:
