Alcon Rear Big Brake Kit for Ford Raptor


4 Piston
360x32mm Rotor
Fits: 2010 to 2014 and 2017 to 2018 Ford Raptor
2009 to 2017 Ford F-150 without electronic parking brake.

SKU: BKR5059D07 Categories: , Tags: , , ,


Key features and benefits
Gains in performance over stock braking system:
– 10% reduction in disc temperature rise
– 33% reduction in pad work rate
– Up to 15% reduction in pedal effort

Ductile Iron caliper housing providing maximum strength and stiffness as well as high resistance to impact and fatigue
Epoxy acrylic paint over acid zinc finish for maximum corrosion protection
High friction pads increase stopping power
Larger rotors increase brake torque and thermal capacity, reducing potential for brake fade
Increased pad area reduces temperatures and increases pad life

High temperature seal material as used in highest levels of motorsport
Wiper seal on every piston for dirt exclusion
Low profile design fits inside OEM 17”Raptor, many 17” and larger aftermarket wheels
Compatible with stock OEM actuation /Retains and utilizes OEM parking brake

*This kit does not fit vehicles equipped with the electronic parking brake.

Wheels that Fit
– Low profile design fits inside OEM 17” Raptor along with many 17” and larger aftermarket wheels.

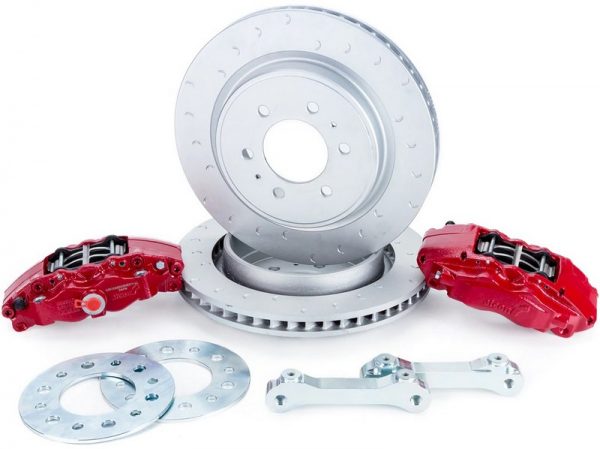

What’s in the Box

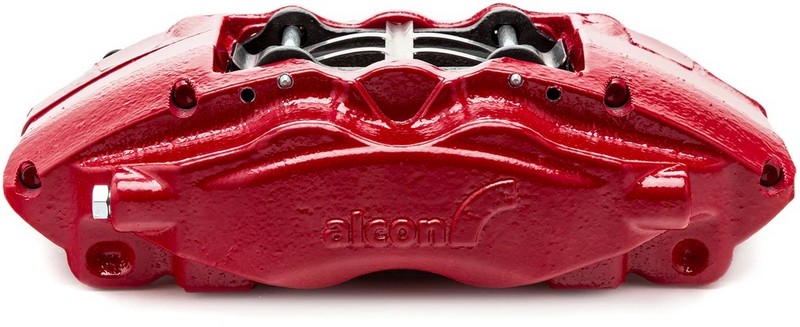

– Left Caliper CIR5059D03HZLT-RL (1)
– Right Caliper CIR5059D03HZRT-LL (1)
– Pads PNS4450X701 (4)*
– Pad Retainer Kit PSA0080X735 (2)*

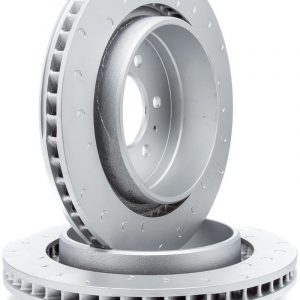

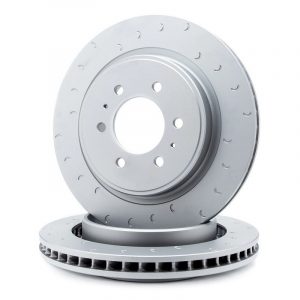

– Left Rotor DIV3430X987C24L (1)
– Right Rotor DIV3430X987C24R (1)

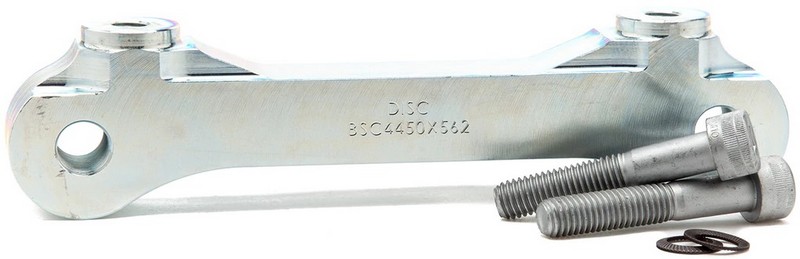

– Bracket Kit BSK4450X562 (2)
– Wheel Spacer SSW0080X1243 (2)
